Quick Details

  • Gearing Arrangement: Helical
  • Output Torque: 160-18000 Nm
  • Rated Power: 0.12-160 kw
  • Input Speed: 750-3000 Rpm
  • Output Speed: 0.1-1108 rpm
  • Place of Origin: Shandong, China (Mainland)
  • Model Number: R, RF, RX, RXF, R...R
  • Brand Name: GUOMAO
  • Product name: 3HP, 230/460Volts, 60HZ, 3PH, Totally enclosed gear motors
  • Input Form: IEC Flange, Directly Connected
  • Output Form: Solid Output Shaft, Flange Output
  • Mounting Position: By Foot or Flange
  • Housing Material: HT200 (High Strength Cast Iron)
  • Gear & Gear Shaft Material: 20CrMnMo or 20CrMnTi (Low Carbon Alloy Steel)
  • Output Shaft Material: 42CrMn or 40Cr (Medium Carbon Alloy Steel)
  • Bearing: China Brand Bearing like HRB, ZWZ, LRC
  • Warranty: 12 Months
  • Certificate: ISO9001

Packaging & Delivery

Packaging Details: standard export package
chenta gearmotor motor reductor transmission gearbox
Delivery Detail: about 25 days
Products Show
Product Description

Product Features:
1-High modularization design:
may equip with various motor or other power input conveniently. Same machine type may equip with various power motor. It is easy to realize the combination and junction between every machine type.
2-Transmission ratio: fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.
3-Form of installation: the position to be installed is not limited.
4-High strength, compact dimension:
The box body is made of high strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
5-Long service life: Under the condition of correct type chosen (including choosing suitable operation parameters) normal operation and maintenance, the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.
6-Low noise: because main parts of speed reducer are processed, assembled and tested critically, therefore the noise of speed reducer is low.
7-High efficieny: The gear unit can reach 95%, worm gear unit can reach 89%.

8-Large radial loading ability

9-Axial load ability of up to 5% of radial load.

Type & Models
Dimensional Description Type:

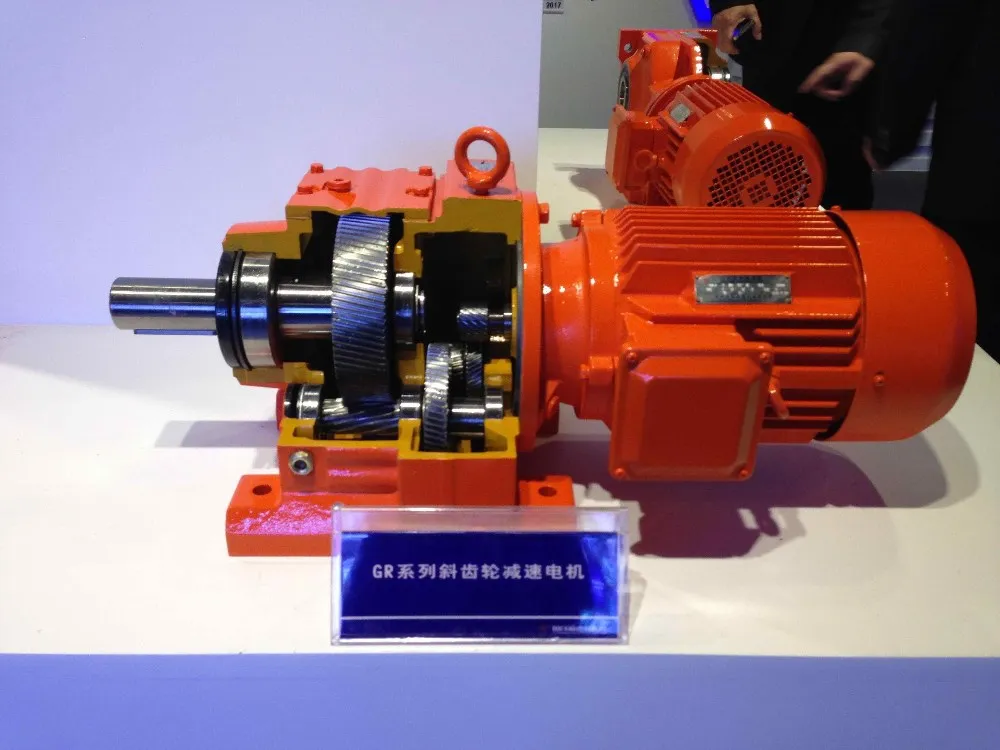

GR Type:
Foot mounted units of two or three stages helical gears.
GRF Type:
B5 Flange mounted units of two or three stages helical gears.
GRX Type:
Foot mounted units of single stage helical gears.
GRXF Type:
Flange mounted units of single stage helical gears.
GRM Type:
Flange mounted helical geared motor with extended bearing housing.
GR..SZ..AD Type:
Input shaft type. As altered type from above mentioned types, it is connected with input shaft, instead of motor.
GR..R Type:
Combined types of two different types. Very big ratios are available with these combined units.
Cutomized:
We have professional technical team, unstandard demands could be available.
Main Models:

GR Type

GR17, GR27, GR37, GR47, GR57, GR67, GR77, GR87, GR97, GR107, GR137, GR147, GR167, GR177

GRF Type

GRF17, GRF27, GRF37, GRF47, GRF57, GRF67, GRF77, GRF87, GRF97, GRF107, GRF137, GRF147, GRF167, GRF177

GRX Type

GRX57, GRX67, GRX77, GRX87, GRX97, GRX107, GRX137

GRXF Type

GRXF57, GRXF67, GRXF77, GRXF87, GRXF97, GRXF107, GRXF137

GRM Type

GRM57, GRM67, GRM77, GRM87, GRM97, GRM107, GRM137, GRM147,  GRM167

GR..R Type

GR27R17, GR37R17, GR47R37, GR57R37, GR67R37, GR77R37, GR87R57, GR97R57, GR107R77, GR137R77, GR147R77
GRF27R17, GRF37R17, GRF47R37, GRF57R37, GRF67R37, GRF77R37,     GRF87R57, GRF97R57, GRF107R77, GRF137R77, GRF147R77

GR..SZ..AD Type

GR..SZ37, GR..SZ47, GR..SZ57, GR..SZ67, GR..SZ77, GR..SZ87, GR..SZ97, GR..SZ107, GR..SZ137, GR..SZ147. GR..SZ167, GR..SZ177
Our Company

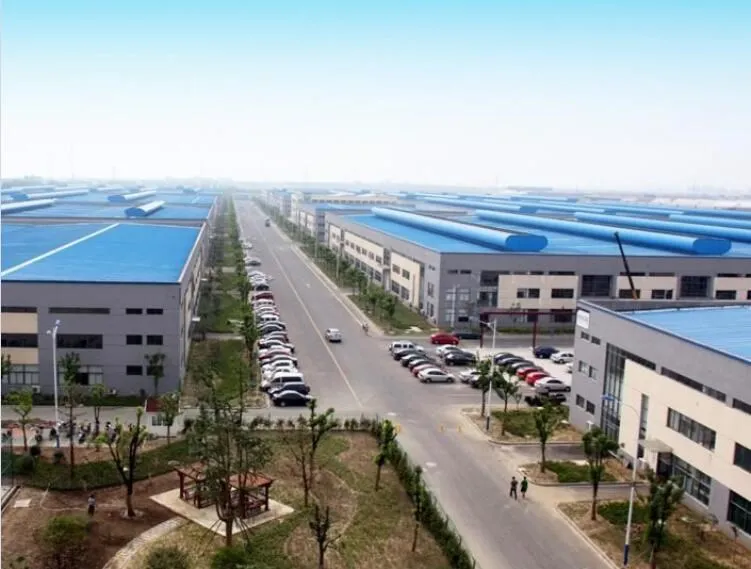

Factory

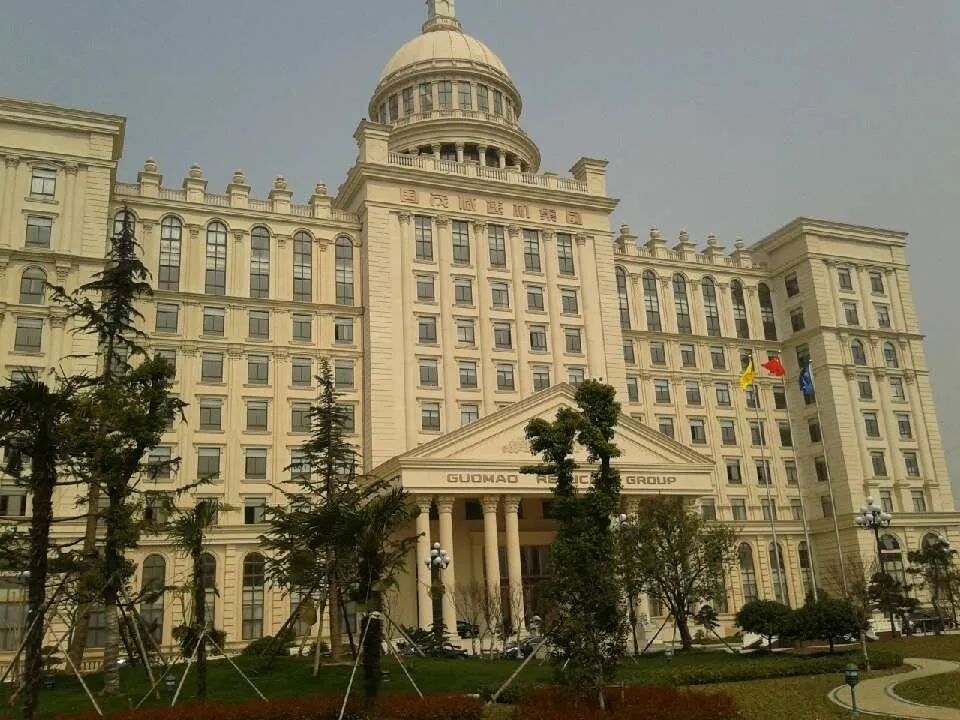

Office Building

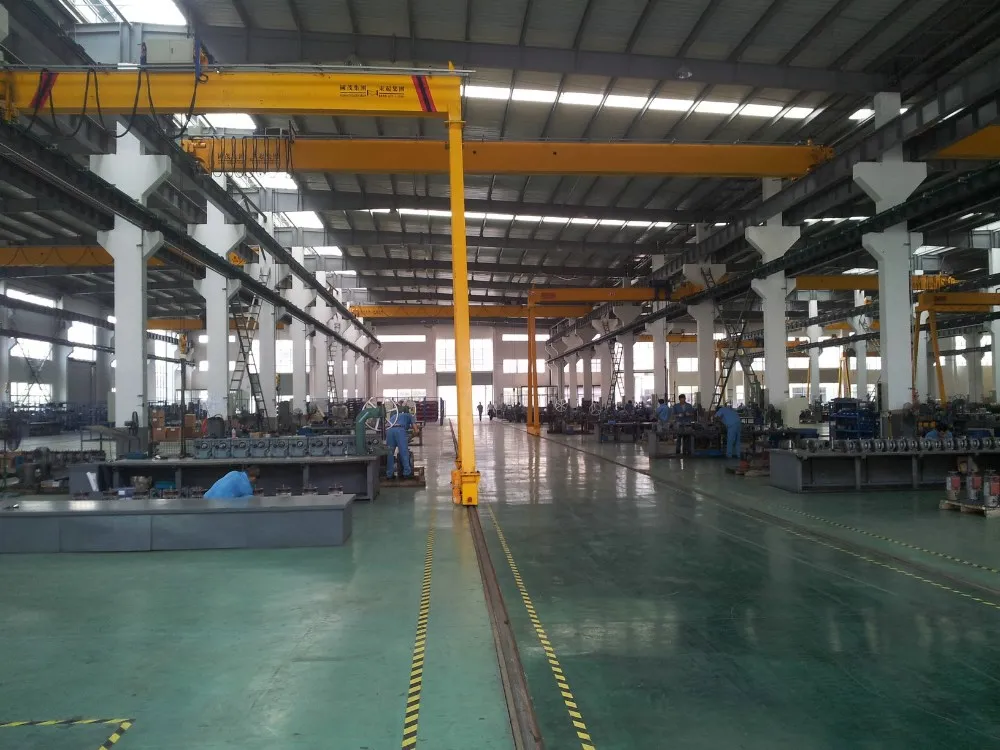

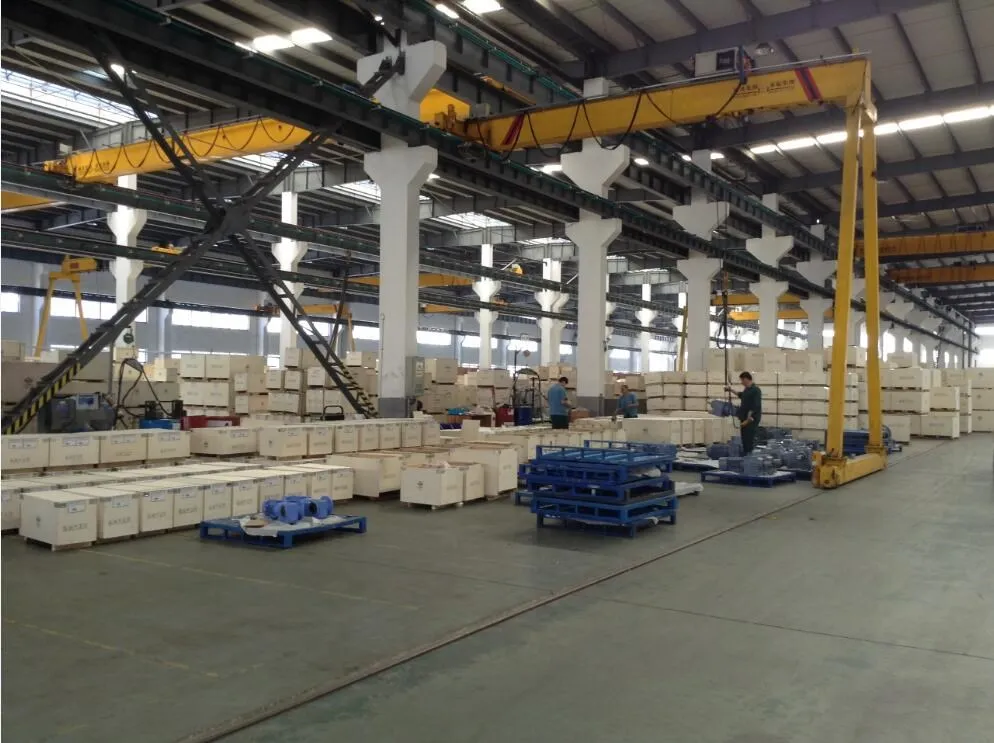

Workshop

One of the workshop

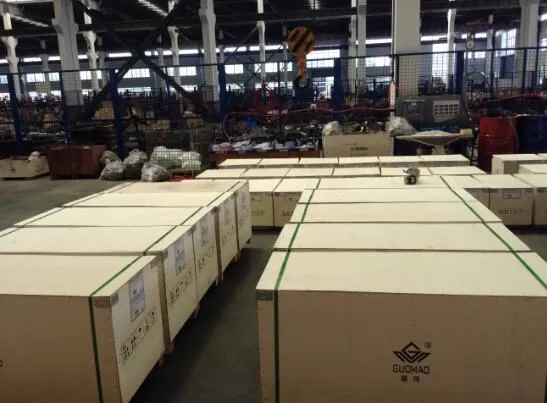

Warehouse

A part view of our warehouse

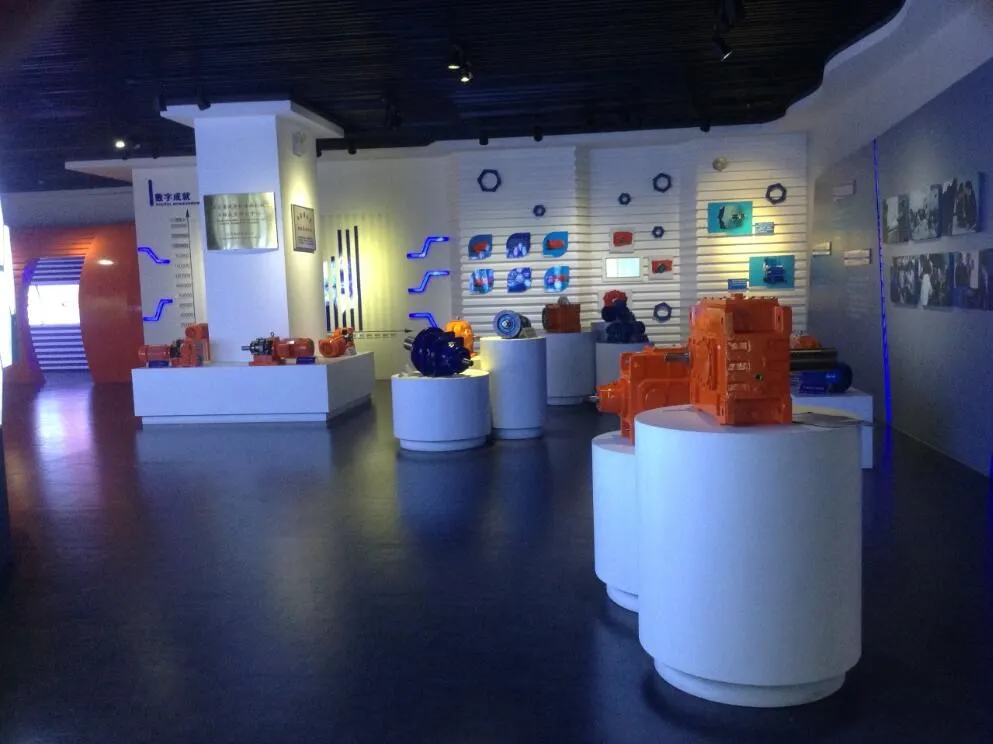

Exhibition Hall

Overall exhibition for our products, factory and history

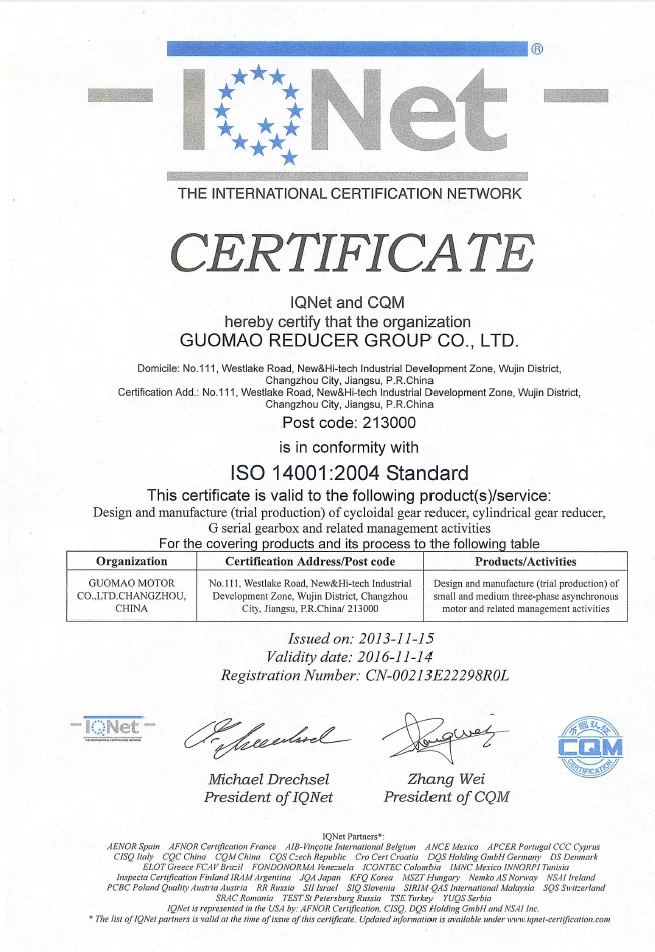

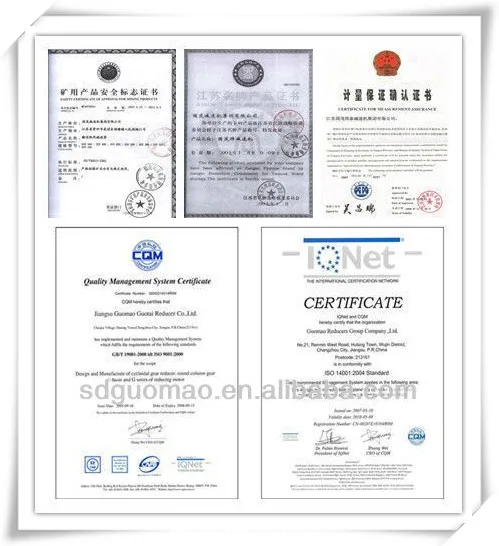

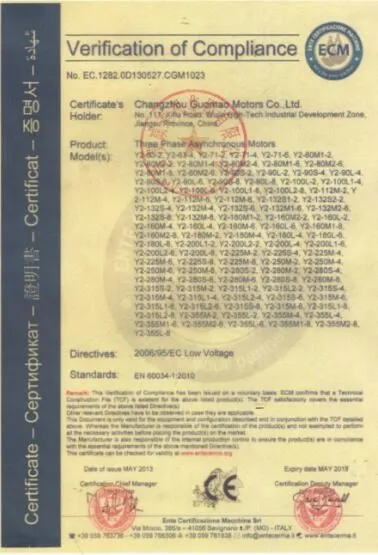

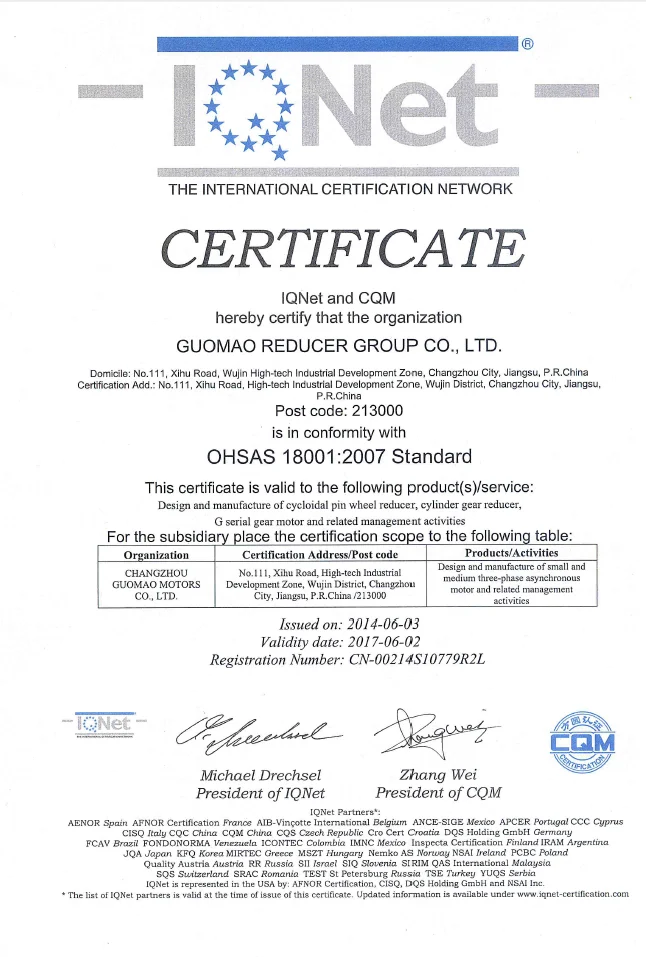

Our Certifications

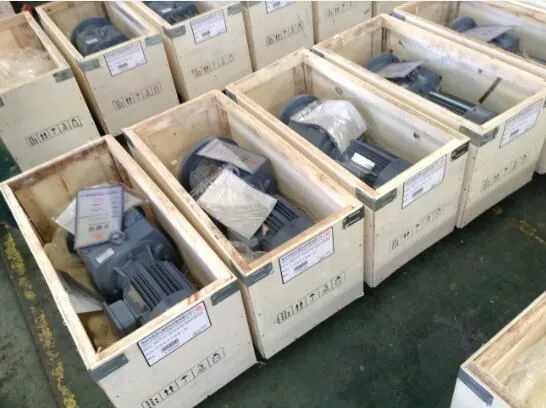

Packing & Delivery

Packing Details  :  sea worthy exporting package suitable for long distance

Delivery Details : 20-35 workdays after receiving deposit

1. Complete package details

2. Stable protective ways

3. Clear markings

Application Machine

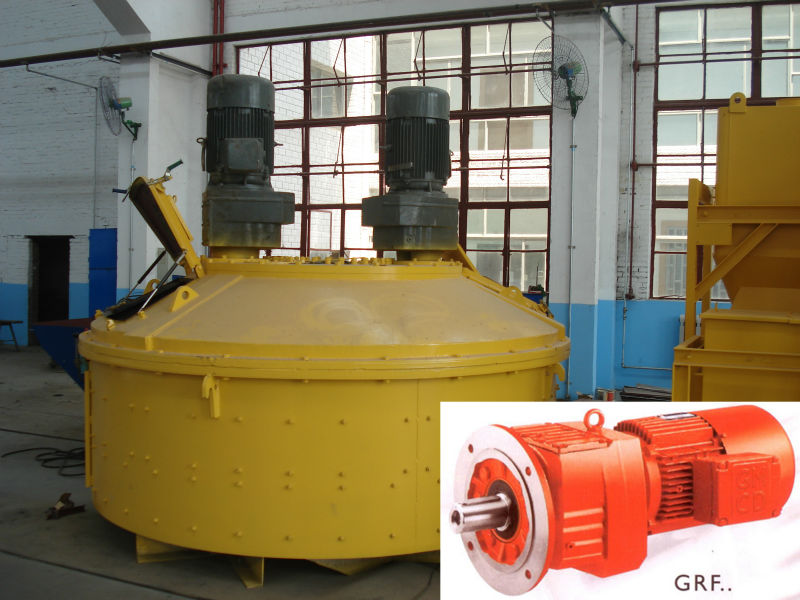

For Mixer

Suitable for various machineries

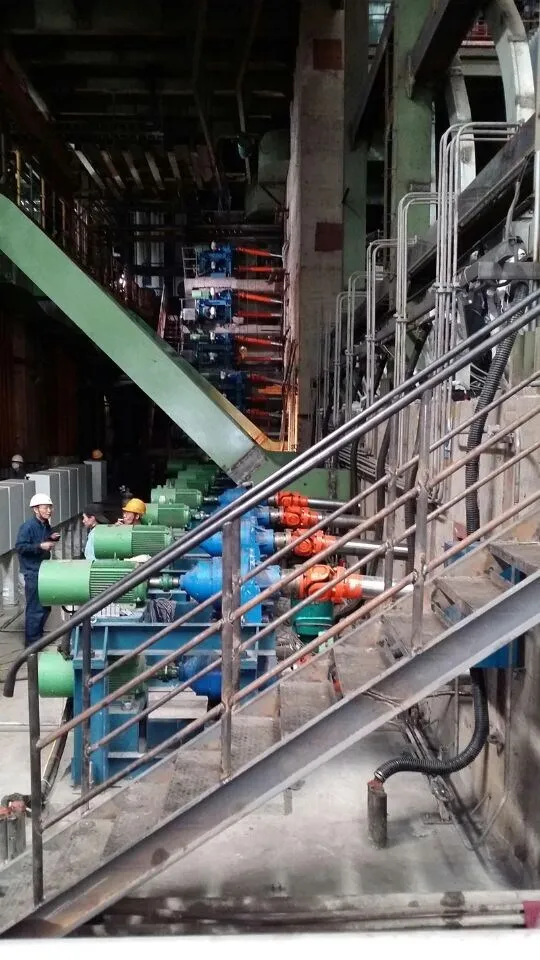

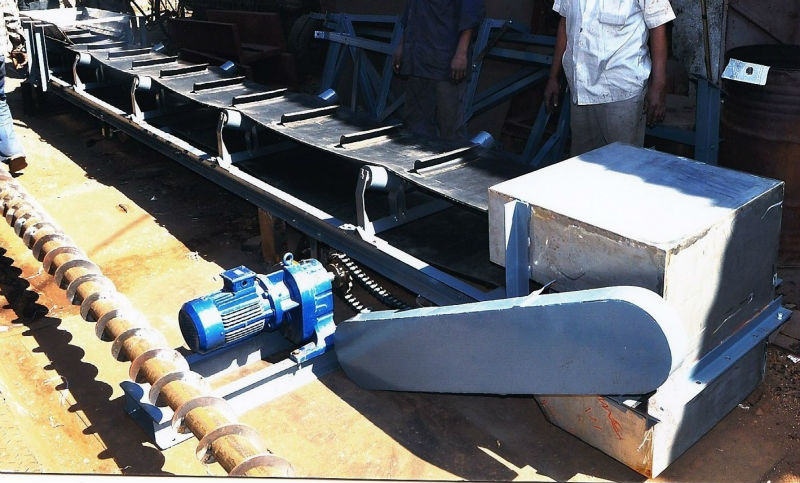

For Conveyor

Suitable for many industries like steel, cement, food etc.

For Feeder

Suitable for different working conditions

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 20-35 workdays, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample in pay.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance; Payment>=1000USD, 30% T/T in advance ,balance before shippment; If payment >=10000USD, Irrevacoble L/C at sight is available.


If you have another question, pls feel free to contact us as below:
MS. EVA ZHOU: # Phone/Whatsapp/Wechat: 0086-15064545726
                             # Skype: gmreducer
                            # Email: eva-gm at cnspeedreducer.com
